ISO-Turning Family : WNMG-BG Double-sided trigon insert, secure cutting edge, for semi-Finishing and Roughing on Steels, Stainless Steels, Super Alloys and Cast Irons. Designation : WNMG 060408-BG

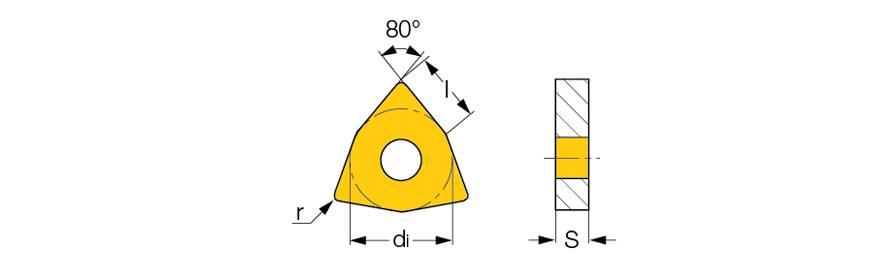

| l | di | S | r | ft(min) | ft(max) | ap(min) | ap(max) |
|---|---|---|---|---|---|---|---|
| 6.52 | 9.52 | 4.76 | 0.80 | 0.16 | 0.45 | 1.00 | 3.50 |
Features
Universal grades covering a wide range of materials.
Reduced number of chipbreakers for easy selection.
Benefits
ET801 grade: PVD coating and substrate designed to balance edge strength and wear resistance. Excellent performance in turning, especially under harsh conditions.
ET1001 grade: CVD coating with optimal thermal wear and resistance, ideal for Cast Iron. Combination of thick coating and substrate give excellent performance in turning.
ET602 grade: PVD coating with optimal thermal resistance and added strength. Tough carbide substrate designed for demanding applications in milling and drilling.
Application
Machining Steel, Stainless steel, Cast iron, Titanium, Inconel & HRSA materials, and Hardened materials.
| Type | Carbide Turning Inserts |
| MPN | WNMG060408-BG (WNMG 332-BG) ET801 |
| Brand | Europa Tool |
| Condition | New |
| Weight | 0.015kg |
