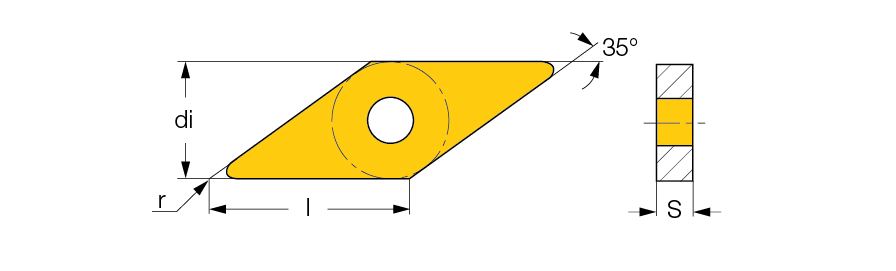

ISO-Turning Family : VNMG-BF Double-sided 35° rhombic insert for semi Roughing and Finish Turning on stainless steel. Low cutting forces due to very sharp edge and positive rake. Item : VNMG 160404-BF
| l | di | S | r | ft(min) | ft(max) | ap(min) | ap(max) |
|---|---|---|---|---|---|---|---|
| 16.60 | 9.52 | 4.76 | 0.40 | 0.05 | 0.30 | 0.10 | 1.50 |
Features
Universal grades covering a wide range of materials.
Reduced number of chipbreakers for easy selection.
Benefits
ET801 grade: PVD coating and substrate designed to balance edge strength and wear resistance. Excellent performance in turning, especially under harsh conditions.
ET1001 grade: CVD coating with optimal thermal wear and resistance, ideal for Cast Iron. Combination of thick coating and substrate give excellent performance in turning.
ET602 grade: PVD coating with optimal thermal resistance and added strength. Tough carbide substrate designed for demanding applications in milling and drilling.
Application
Machining Steel, Stainless steel, Cast iron, Titanium, Inconel & HRSA materials, and Hardened materials.
| Type | Carbide Turning Inserts |
| MPN | VNMG160404-BG (VNMG 331-BG) ET801 |
| Brand | Europa Tool |
| Condition | New |
| Weight | 0.02kg |
