| Type | SPKN Milling Inserts | |
| Quantity | 1 off | |
| Application | Milling | |
| Manufacturer | Europa Tool | |
| Grade | ET602 | |
| Material | Micro-Grain Solid Carbide | |
| Part No | SPKN1203EDTR ET602 |
Milling Family : SPKN EDTR Flat rake milling inserts for general use. The -42 design provide an improved tool life. Item : SPKN 1203EDTR
 |
 |
  |

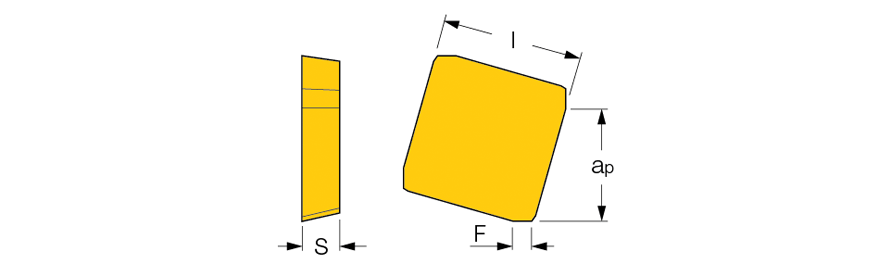

| l | S | F | ap | fz(min) | fz(max) |
|---|---|---|---|---|---|
| 12.70 | 3.18 | 1.40 | 9.50 | 0.08 | 0.15 |
Machining Steel, Stainless steel, Cast iron, Titanium, Inconel & HRSA materials, and Hardened materials.
Application
ET602 Grade: PVD coating with optimal thermal resistance and added strength. Tough carbide substrate designed for demanding applications in milling and drilling.
Benefits
Reduced number of chipbreakers for easy selection.
Universal grades covering a wide range of materials.
Features
| MPN | SPKN1203EDTR ET602 |
| Type | Milling Inserts |
| Brand | EUROPA TOOL |
| Condition | New |
| Weight | 0.02kg |
